Halverson HWP-100TR-D Firewood Processor

Call for Price
Overview

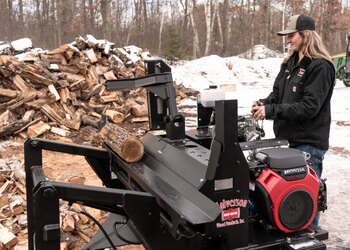

HWP-100TR-D Firewood Processor

Load, cut, and split firewood on the go.

More Freedom. Easier Processing.

Perfect for residential and farm use, the HWP-100TR-D is a DuroMax-powered firewood processor for those who are always on the move. Simply hook it up to a standard 2” ball and take it wherever you need.
Specifications
Model
HWP-100TR-D
Category Name
Forestry & Fencing
Manufacturer
Halverson
details

Key Features

  • DuroMax Engine: The HWP-100TR-D features a 16hp DuroMax engine.
  • Hydraulic Chainsaw: The HWP-100TR-D includes a hydraulic-powered chainsaw for cutting logs.
  • Single-Operator Operation: The HWP-100TR does three jobs with one machine, enabling a single operator to process more wood in less time.
  • Simple Controls: Lift a log onto the deck, clamp it down with the grab arm, and cut it to length. Once the cut piece falls into place, it’s immediately split by the wedge.
  • On-the-Go Convenience: Take the HWP-100TR directly to the source – its mobile design allows you to trailer the processor to the woods, eliminating the need to transport heavy logs to a stationary splitter.
  • Attach/Detach Mounting: Simply hook it up to a standard 2” ball and take it wherever you need. (Not for highway use.)
specs
Length Travel = 126″ (320 cm)
Working = 96″ (244 cm)
Width 68″ (172 cm)
Height 64″ (162.5 cm)
Weight 1260 lbs (572 kg)
Connections NA
Material 3/16″ Steel
Max Log Diameter 14″ (37 cm)
Max Log Length 8′ (2.44 m)
Min Log Length 4′ (1.22 m)
Firewood Cut Length Up to 16″ (33cm – 38 cm)
Saw Bar 18″ (64 cm) Versacut
Saw Chain 68 DL 3/8 pitch 0.58
Saw Motor Gear
Saw Oiler Automatic 2 Qt (1.89 l)
Max Saw Cut 14″ (37 cm)
Splitter Cylinder Custom 3.5″ x 18″ Stroke
Splitter Force 21,195 @ 2600 psi
Splitting Wedge 2-way or 4-way
In-Feed Sliding Trough Carries Log to Wedge
Tire Size 4.8-12
Mounting 2″ Ball
Motor DuroMax 420CC
Fuel Capacity (Gas) 1.75 Gal
Oil Capacity 15 gal.
RPM 3600
Pump 16/4 Two Stage Pump
GPM 16
Oil Filter Spin On
faq

Frequently Asked Questions

Q: How big of a log can I process?
A: The HWP-100TR can process logs up to 14” in diameter and 8’ in length.

Q: Where can I purchase one?
A: Get a quote from our sales team or find a dealer near you.

literature
Name Link
Download HWP-100TR-D Manual Download
Download HWP-100TR-D Flyer Download
Halverson Full Line Flyer Download
Halverson Spec Sheet Download
options
  • The HWP-100-TR comes standard with a 2-way splitting head, but an optional 4-way wedge is available as an upgrade.
  • The HWP-100-TR-D comes standard with a pull start. You can upgrade to an electric start.
  • The HWP-100TR is available with a DuroMax (HWP-100TR-D) or Honda (HWP-100TR-H) engine.
