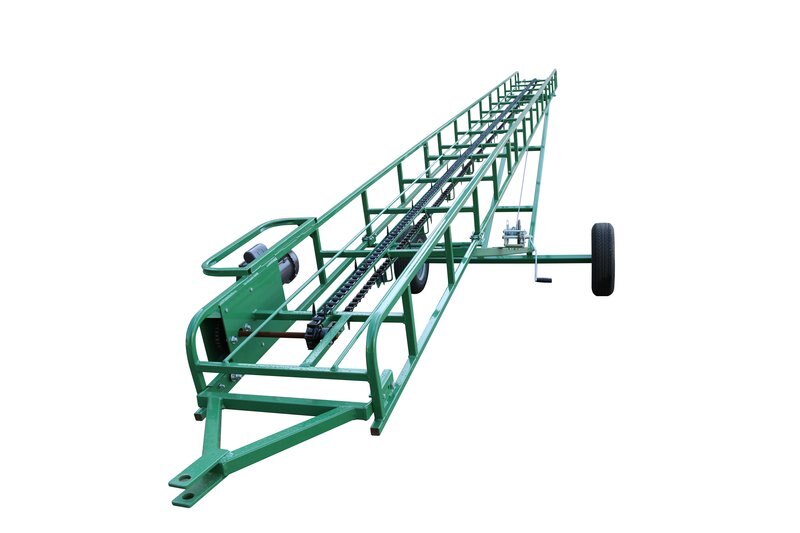

Bauman Maple Leaf Tubular Bale Elevator

The Maple Leaf Tubular Bale Elevator is equipped to move small square bales of hay and straw for feeding or bedding efficiently and economically. The lightweight and easy maneuverability makes it the ideal candidate for industrial and agricultural applications.  Optional extensions are available in 6’ and 10’ increments up to 50’ in length. Thanks to our unique full-length return chain slide, the direct bottom drive motor and reducer works smoothly, without return chain drag.

Specifications

Standard 20' unit

1” x 1” steel square tube frame

Easy to assemble, bolt together construction

Gear reducer drive

#55 HB4 chain

Full-length return chain

Techtop High Torque Motor, 56C Round Body (Sold Separately)
