Good things do come in small packages! With a 2'5" = 5'6" cutting width, the versatile Tandem Supper Narrow Vineyard Disc offers all the performance growers expect from T. G. Schmeiser in a more maneuverable compact size.

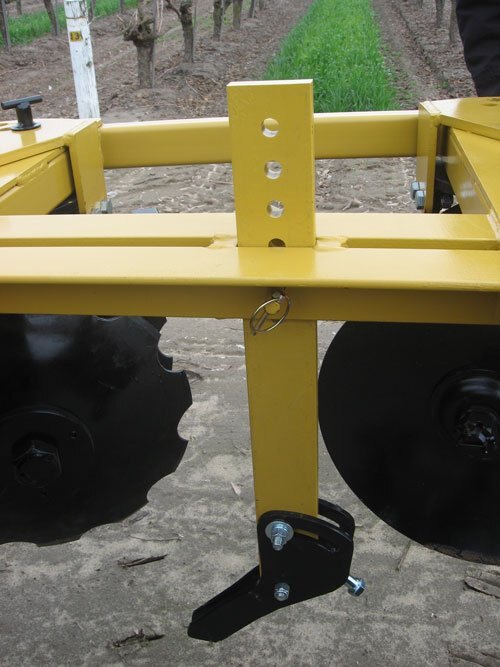

Standard Features: 22" x 5mm disc blades on 9" spacing 3x3 main frame tubing Exclusive taper frame design Adjustable middle buster Adjustable gangs; 0-6-12-18-24 degree range 1-3/4" axles with spring tension washers Trunion mount self-aligning triple lip bearings Bearing wear plates CAT I and II and CAT II Quick-Hitch Reinforced top link 8 to 12 blades.
Options: Easy-to-adjust scraper blades Till an' Pak Trail Hitch "Add-A-Blade" extensions Notched blades Dirt diverters Cane deflectors
Reversible Type Tandem Disc
The flexible Schmeiser RTM is the perfect balance of usable weight and practicality that's ideal for a full range of vineyard applications.
Standard Features: 22" x 5mm disc blades on 9" spacing 3x3 main frame tubing Exclusive taper frame design Adjustable middle buster with two mount locations Adjustable gangs; 0-30 degree range Easy-to-reverse 3-point hitch 1-3/4" axles with spring tension washers Trunnion mount self-aligning triple lip bearings Bearing wear plates CAT I and II and CAT II Quick Hitch Reinforced top link 12 to 18 blades.
Options: Easy-to-adjust scraper blades Dirt diverters Cane deflectors Tool bar or Till an' Pak attachment "Add-A-Blade" extensions
Reversible Type Tandem Disc
Built to traditional Schmeiser standards of quality, the RTH meets the needs of growers who require up to a 10' wide cutting width and count on heavy-duty performance and reliability.
Standard Features: 24" x 6mm disc blades on 9" spacing 4x4 main frame tubing Exclusive taper frame design Adjustable middle buster with two mount locations Adjustable gangs; 0-30 degree range Easy-to-reverse 3-point hitch 1-3/4" axles with spring tension washers Trunnion mount self-aligning triple lip bearings Bearing wear plates CAT II and CAT II Quick Hitch Reinforced top link.
Options: Easy-to-adjust scraper blades Dirt diverters Cane deflectors Tool bar or Till an' Pak attachment "Add-A-Blade" extensions
