ProDig Shear Grab

Call for Price
Overview

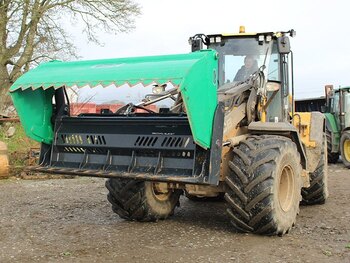

The Prodig Shear Grab is one of the strongest and most robust shear grabs on the market. It is manufactured with Hardox tines & Hardox blades to reduce waste and down time due to breakages.

  • Shear grabs available in widths from 1.3m to 2.2m.
  • Manufactured with 810mm Hardox or forged tines.
  • Double Hardox tine or heavy duty forged tine at both ends of grab.
  • Our full range of Hardox tines are manufactured incorporating a replaceable wear tip meaning the tine never has to be replaced.
  • Hardox cutting blades as standard for superior cut and long life.
  • Heavier front (10mm) and side (12mm) plates than competitor shear grabs.
  • Heavy wall 100 x 100 x 10 box section with wear strips used on bottom bar.
  • Nickel chrome plated hydraulic Rams for long life in aggressive environment.
  • Bolt on hitch brackets to suit all machines.
  • Optional pressure relief valve for machines in excess of 200 Bar hydraulic pressure.
Specifications
Model
Shear Grab
Category Name
Livestock & Feeding
Manufacturer
ProDig
features
http://www.prodigattachments.com/images/Product-Feature-Graphics/MB-F01.jpg
  1. Zinc plated pins.
  2. Nickel chrome plated hydraulic rams for long life in an aggressive environment.
  3. Hardox shear blades for superior cut and long life.
  4. All moving parts fitted with greasing points.
  5. Heavy wall 100 x 100 x 10 box section with wear strips used on bottom bar.
  6. Heavier front and side plates than standard shear grabs.
  7. Manufactured with 810mm (32’’) Hardox or Forged tines.
technical data
Shear Grab SG 1300 HX SG 1500 HX SG 1800 HX SG 2200 HX
Height (mm) 1034 1034 1034 1034
Width (mm) 1320 1520 1820 2220
Depth (mm) 1100 1100 1100 1100
Capacity (m³) 0.92 1.06 1.28 1.56
Weight (kg) 561 603 687 793
Number of tines 9 HARDOX 10 HARDOX 12 HARDOX 15 HARDOX
Tine spacing (mm) 116 122 121 116
Tine lenght 885 885 885 885
Rams 2x90mm Bore 2x90mm Bore 2x100mm Bore 2x100mm Bore
Opening hight 800 800 800 800
Pressure Relief Valve optional optional optional optional

 All measurements approx (±5mm, ±5kg)
Weight excludes brackets as these vary
